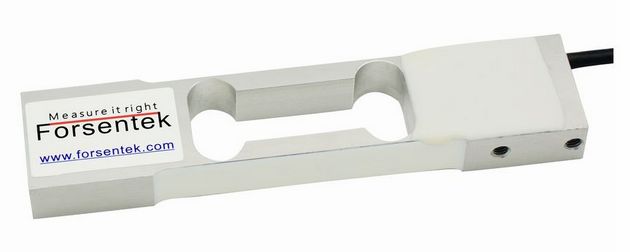

500g load cell 500 gram load cell 5N weight sensor

Brand Name : Forsentek

Model Number : FNB

Place of Origin : China

MOQ : 2pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 10000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Usage : Weighing measurement sensor

Theory : Strain gauge load cell

Output : Analog Sensor

Capacity : 300g 500g 1kg 2kg 3kg

Contact Now

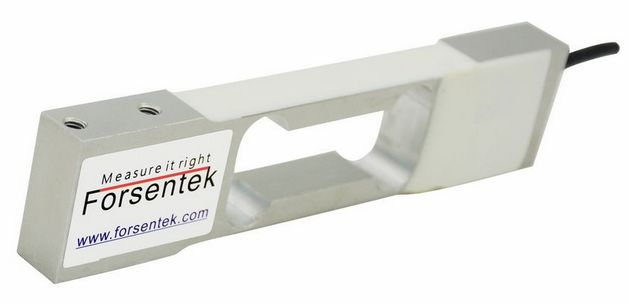

500g load cell 500 gram load cell 5N weight sensor

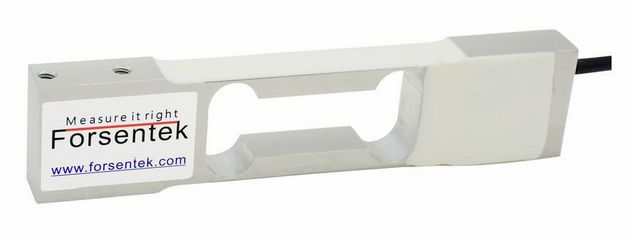

500g load cell 500 gram load cell 5N weight sensor

Features

  • Aluminum construction,strain gauge technology
  • Temperature compensated,high accuracy
  • Single point structure,easy to install
  • Suitable for platform sizes up to 150*150(mm)
  • Widely used for price computing scales,counting scales,bench scales and other high accuracy weighing applications

500g load cell 500 gram load cell 5N weight sensor

Specifications

Capacity 300g 600g 1kg 2kg 3kg
Rated output 1.3±10%mV/V
Excitation 3-15V
Zero balance ±5% R.O.
Nonlinearity ±0.02% R.O.
Hysteresis ±0.02% R.O.
Nonrepeatability ±0.015% R.O.
Creep(30min) ±0.03% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.05% R.O./10oC
Temperature shift span ±0.03% R.O./10oC
Input resistance 405±10 ohms
Output resistance 350±3 ohms
Insulation resistance >2000M ohms
Ingress protection IP65
Material of element Aluminum alloy
Cable Ø4*250mm(Longer cable available)
Wiring code Red--E+ Black--E- Green--S+ White--S-

High accuracy Load cell 300g 500g 1kg 2kg 3kg

500g load cell 500 gram load cell 5N weight sensor

Dimensions

500g load cell 500 gram load cell 5N weight sensor

Ordering code:

FNB-0.3kg FNB-0.5kg FNB-1kg FNB-2kg FNB-3kg
