Small torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM miniature torque transducer

Place of Origin : China

Brand Name : Forsentek

Model Number : FTE

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Usage : Torque measurement transducer

Theory : Strain gauge torque transducer

Output : Analog Sensor

Capacity : 0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 12NM 15NM 20NM

Material : Aluminum alloy/Stainless steel

Type : Reaction torque sensor

Contact Now

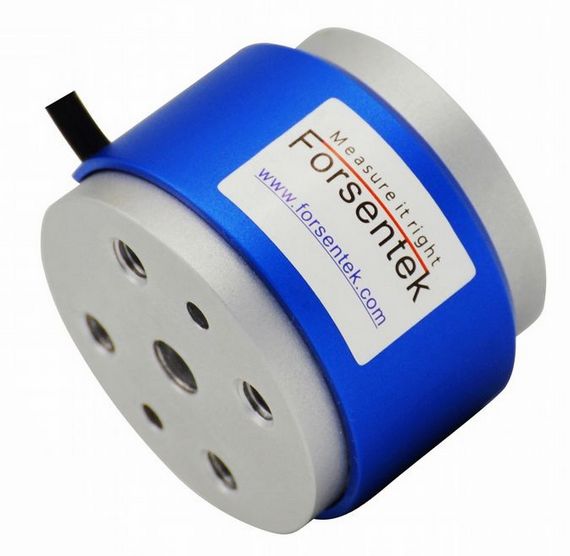

Small torque sensor miniature torque transducer

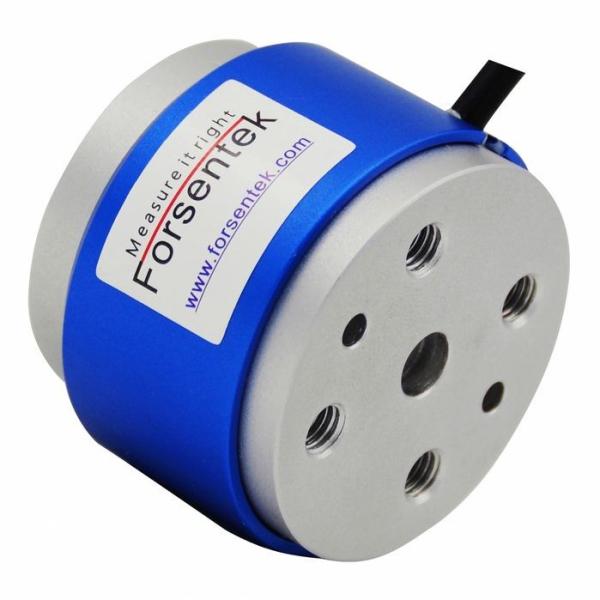

Small torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM miniature torque transducer

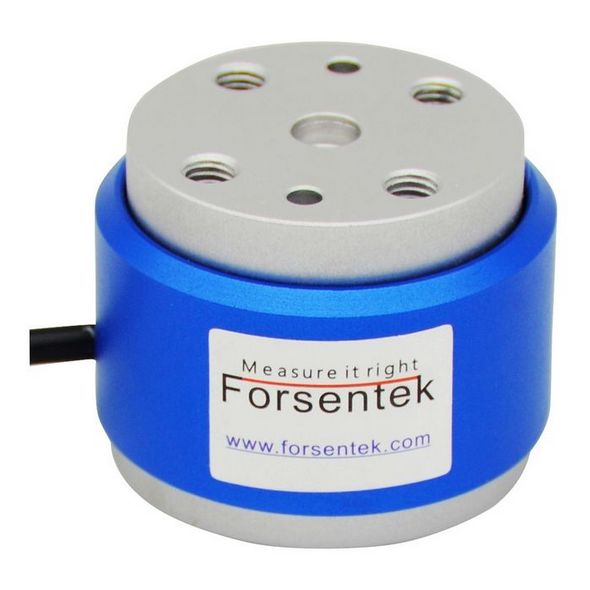

Small torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM miniature torque transducer


Features

  • Aluminum construction,small size
  • Flange to flange structure,easy to insall
  • Analog output,high accuracy
  • Reaction torque measurement
  • Substitute for interface torque sensor MRT


Small torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM miniature torque transducer

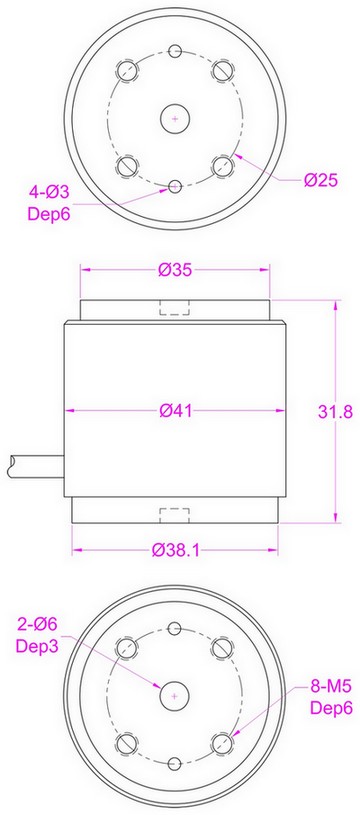

Dimensions

Small torque sensor 0.1NM 0.2NM 0.5NM 1NM 2NM 5NM miniature torque transducer

Specifications

Capacity

0.1NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM
10NM 12NM 15NM 20NM

Rated output1.0 mV/V
Excitation3-15V
Zero balance±2% R.O.
Nonlinearity±0.2% R.O.
Hysteresis±0.2% R.O.
Nonrepeatability±0.1% R.O.
Creep(10min)±0.1% R.O.
Safe overload120% F.S.
Ultimate overload150% F.S.
Compensated temp.-10...+40oC
Operating temp.-20...+60oC
Temp. shift zero±0.02% R.O./oC
Temp. shift span±0.01% R.O./oC
Input resistance700 ohms
Output resistance700 ohms
Insulation resistance>2000M ohms
Ingress protectionIP50
Material of elementAluminum alloy
CableØ3.5*3000mm
Wiring codeRed--E+ Black--E- Green--S+ White--S-

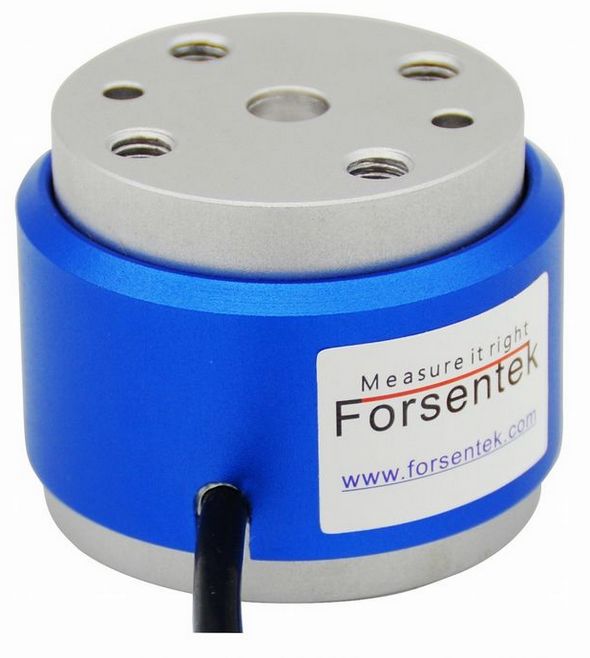

Small size flange to flange torque sensor FTE
