Stainless steel submersible load cell IP68 waterproof

Forsentek Co., Limited
Contact Now

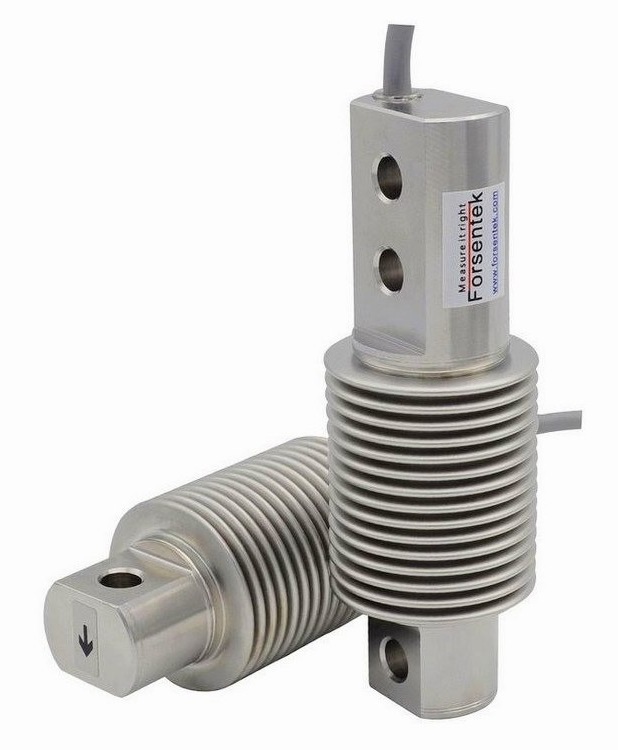

Stainless steel submersible load cell IP68 waterproof

Place of Origin : China

Brand Name : Forsentek

Model Number : FSH

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Usage : Weighing

Theory : Strain gauge load cell

Output : Analog Sensor

Material : Stainless steel

Type : Bending beam load cell

Contact Now

Submersible load cell 5kg 10kg 20kg 50kg 100kg 200kg 500kg

Stainless steel submersible load cell IP68 waterproof

Features

  • Stainless steel construction
  • Bending beam load cell
  • Laser welded,IP68 protection,submersible
  • Strain gauge technology,analog output,high accuracy
  • Widely used for belt scales,vessel weighing,batch weighing,filling machines,etc.

Dimensions

Stainless steel submersible load cell IP68 waterproof

Specifications

Capacity 5kg 10kg 20kg 50kg 100kg 200kg 300kg 500kg
Rated output 2.0mV/V
Excitation 5-15V
Zero balance ±2% R.O.
Nonlinearity ±0.015% R.O.
Hysteresis ±0.015% R.O.
Nonrepeatability ±0.01 R.O.
Creep(30min) ±0.015 R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature -10...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.015% R.O./10oC
Temperature shift span ±0.015% R.O./10oC
Input resistance 390±10 ohms
Output resistance 350±5 ohms
Insulation resistance >5000M ohms
Ingress protection IP68
Material of element Stainless steel
Cable Ø5.3*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Stainless steel load cell submersible
