10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

Name: 10N weight sensor 20N small load cell 50N load sensor 100N weight measurement
Brand: Forsentek
Price: 1 USD

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement Manufactures

Brand Name : Forsentek

Model Number : FMZS

Place of Origin : China

MOQ : 10pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 45000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Usage : Weight measurement

Type : Miniature weight sensor

Output : Analog Sensor

Capacity : 1kgf 2kgf 3kgf 5kgf 10kgf(10N 20N 30N 50N 100N)

Structure : Small beam load cell

Contact Now

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

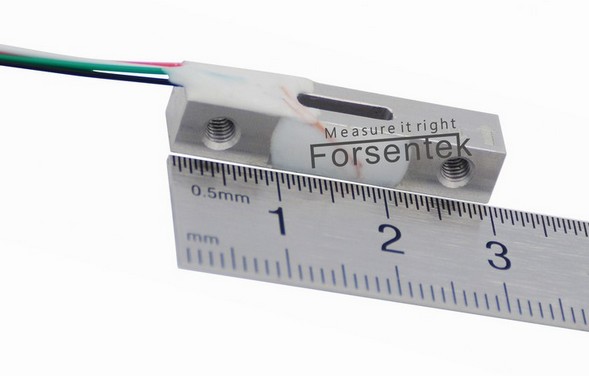

Small size weight sensor FMZS is a weight transducer that converts mechanical load into electrical signal proportional to the applied weight.The measured load or weight causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.This load cell can be connected with arduino board through 24-bit analog-to-digit converter HX711.You may find miniature load cell FMZS suitable for applications such as coffee machines weight measurement,vending machines weight monitoring,inventory management,etc..

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

Specifications

Rated capacity	1kg / 20N / 2.2 lbs 2kg / 20N /4.4 lbs 3kg / 30N / 6.6lbs 5kg / 50N / 11 lbs 10kg / 20N / 22 lbs
Rated output	1.2 mV/V
Excitation	3-10 V
Zero balance	±0.1mV/V
Nonlinearity	±0.05% of R.O.
Hysteresis	±0.05% of R.O.
Nonrepeatability	±0.05% of R.O.
Creep(3min)	±0.05% of R.O.
Safe overload	120% of F.S.
Ultimate overload	200% of F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift zero	±0.03% of R.O./^oC
Temperature shift span	±0.02% of R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Cable	32AWG*85mm(Longer cable available)
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

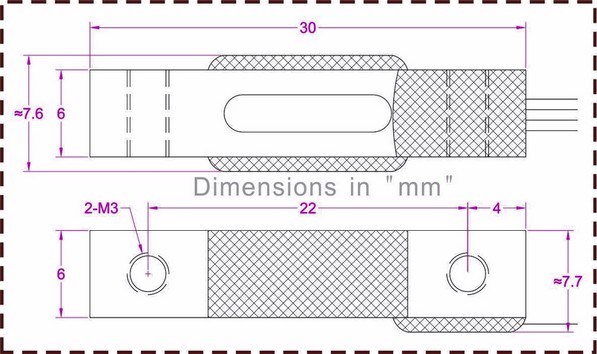

Dimensions(in milimeter)

10N weight sensor 20N small load cell 50N load sensor 100N weight measurement

Ordering code:

FMZS-1kg FMZS-2kg FMZS-3kg FMZS-5kg FMZS-10kg

Click here to download datasheet
