3kN Force torque sensor 20NM Torque and Thrust Biaxial Sensor

Brand Name : Forsentek

Model Number : FFT

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Delivery Time : 4~5 working weeks

Packaging Details : Carton

Certification : CE

Usage : Force torque measurement

Type : Thrust torque sensor

Output : Analog Sensor

Measuring range : Force 3kN,torque 20NM

Mounting : Flange-to-flange

Theory : 2 axis load cell

Contact Now

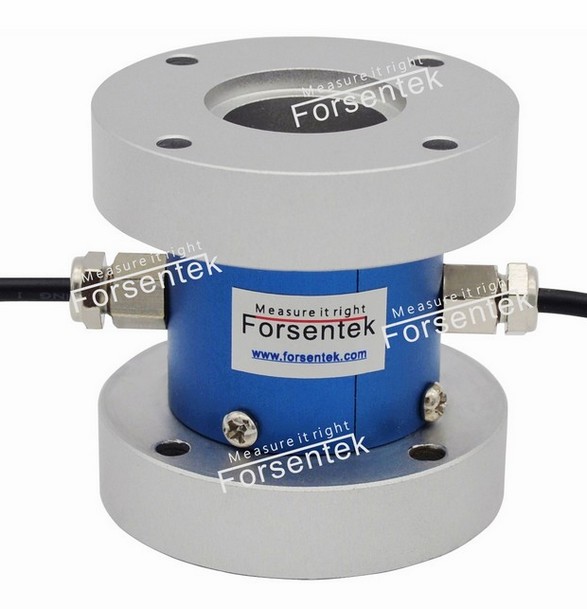

3kN Force torque sensor 20NM Torque and Thrust Biaxial Sensor

Features

  • Aluminum construction,flange to flange mounting
  • Strain gauge technology,analog signal output
  • Torque measurement and force measurement combined in one sensor
  • Customizable(Dimensions,material,torque range,force range...)

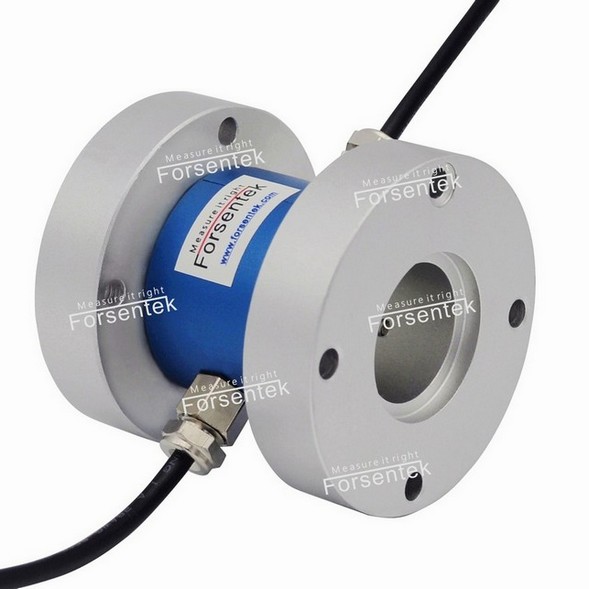

3kN Force torque sensor 20NM Torque and Thrust Biaxial Sensor

Specifications

Capacity 20NM/3kN
Rated output 1.5/1.0mV/V
Excitation 3-15V
Zero balance ±3% R.O.
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.2 R.O.
Creep(5min) ±0.1 R.O.
Safe overload 120% F.S.
Ultimate overload 150% F.S.
Compensated temp. 0...+40oC
Operating temp. -10...+60oC
Temp. shift zero ±0.03% R.O./oC
Temp. shift span ±0.01% R.O./oC
Input resistance 700/380 ohms
Output resistance 700/350 ohms
Insulation resistance >2000M ohms
Ingress protection IP50
Material of element Aluminum alloy
Cable Ø3.3*3000mm
Wiring code Red--E+ Black--E- Green--S+ White--S-

Force and torque sensor FFT

3kN Force torque sensor 20NM Torque and Thrust Biaxial Sensor

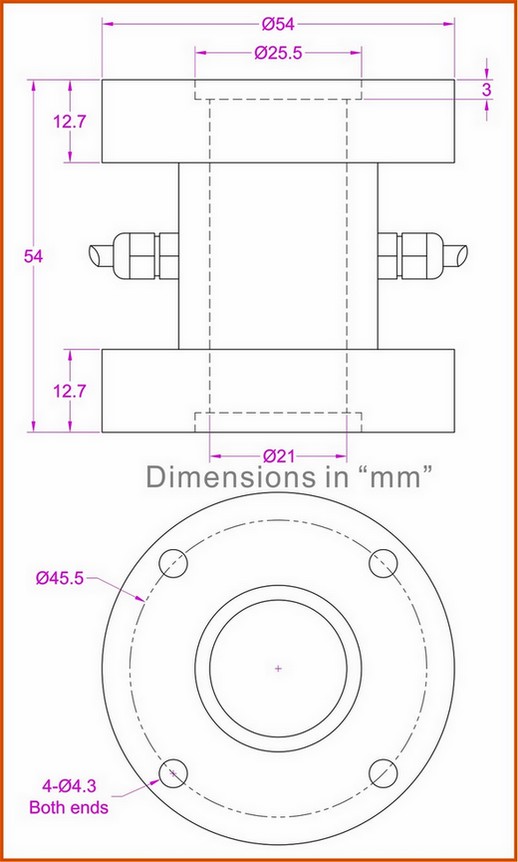

Dimensions

3kN Force torque sensor 20NM Torque and Thrust Biaxial Sensor

Click here to download datasheet
