Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Component Force Sensor 6.75klb

Name: Triaxial Load Cell 3000kg 3axis Load Cell 30kN Multi Component Force Sensor 675klb
Brand: Forsentek
Price: 1 USD

Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Component Force Sensor 6.75klb Manufactures

Brand Name : Forsentek

Model Number : F3H

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1800pcs/month

Delivery Time : 5 weeks

Packaging Details : 1pc/box

Certification : CE

Usage : Multi-axis force measurement

Force range : 50kN 30kN 20kN 10kN 5kN 3kN 2kN

Theory : Triaxial Load Cell

Output : Analog Sensor

Contact Now

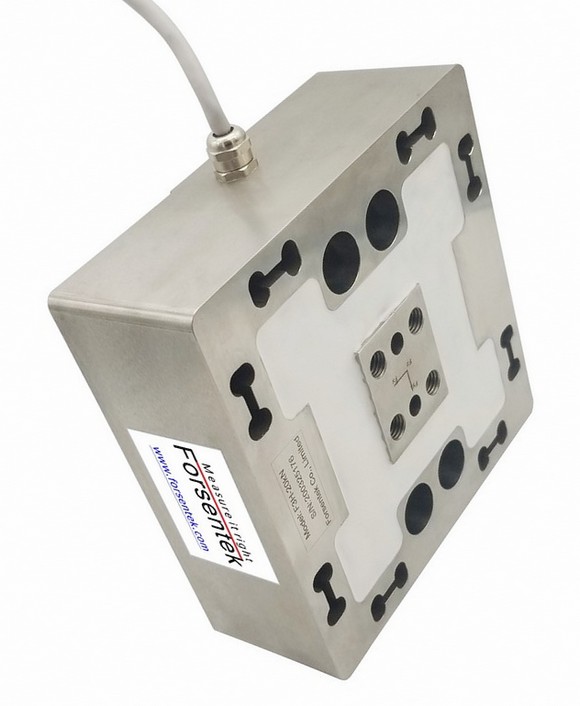

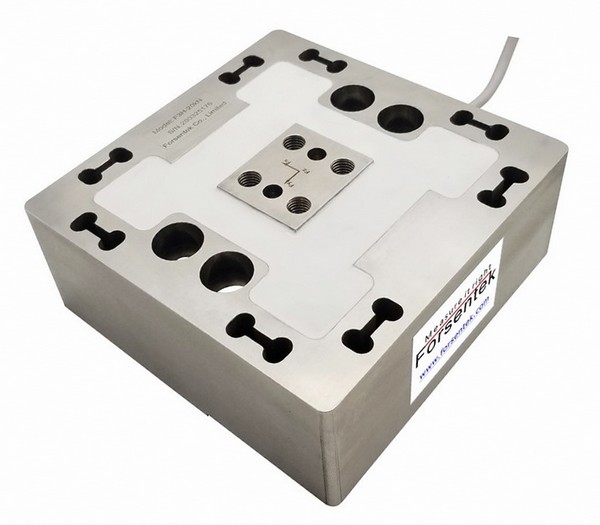

Triaxial load cell 3000kg 3-axis load cell 30kN Multi component force sensor

Triaxial Load Cell F3H is designed to measure force in Fx/Fy/Fz at the same time with 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 50kN measuring ranges to choose from,each axis is able to measure force in both tension and compression direction.Stainless steel construction,low profile design makes 3-component force sensor F3H suitable for 3-axis force measurement applications with limited mounting space.Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Component Force Sensor 6.75klb

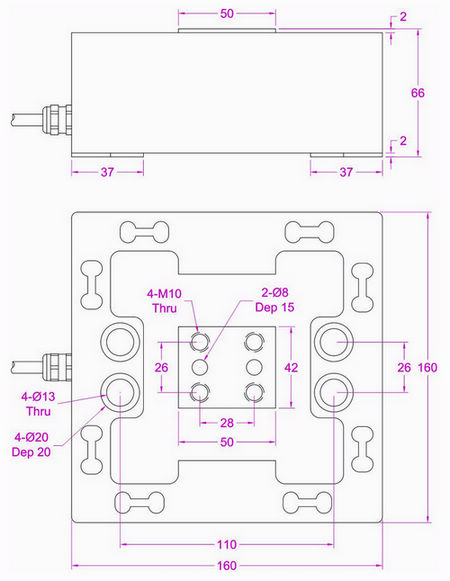

Dimensions(in milimeter)

Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Component Force Sensor 6.75klb

Specifications

Rated Capacity	2kN / 450lbf / 200kg 3kN / 675lbf / 300kg 5kN / 1.12klbf / 500kg 10kN / 2.25klb / 1000kg 20kN / 4.5klb / 2000kg 30kN / 6.75klb / 3000kg 50kN / 11.2klb / 5000kg
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.3% R.O.
Hysteresis	±0.3% R.O.
Non-repeatability	±0.1% R.O.
Creep(5min)	±0.05% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift on zero	±0.03% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	700±100 ohms
Output resistance	700±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø6*3000mm 12-pin shield
Wiring code	4-wire connection for each axis

Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Axis Force Sensor 6.75klb

Triaxial Load Cell 3000kg 3-axis Load Cell 30kN Multi Component Force Sensor 6.75klb

Click here to download datasheet
