Flange type force sensor Tension compression load cell flange mounted

Name: Flange type force sensor Tension compression load cell flange mounted
Brand: Forsentek
Price: 1 USD

Flange type force sensor Tension compression load cell flange mounted Manufactures

Brand Name : Forsentek

Model Number : FFD

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2100pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Compression force measurement

Type : Flange mount load cell

Output : Analog Sensor

Capacity : 2kN 3kN 5kN 10kN 20kN

Contact Now

Flange type force sensor Tension compression load cell flange mounted

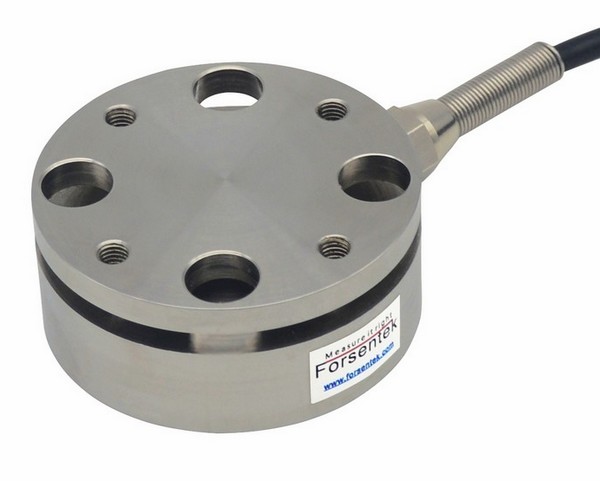

Flange type force sensor FFD is made of stainless steel based on strain gauge technology intended for both compression and tension force measurement,force sensor FFD offers 2kN / 3kN / 5kN / 10kN / 20kN five different rated capacities to choose from,which delivers maximum 0.2% non-linearity of the rated output.Low profile design with only 25mm total height,flange-to-flange structure enables FFD to be easily and firmly connected to force applying mechanism,you may find transducer FFD suitable for applications such as hand press force verification,actuator force control,assembly force checking,spring testing,hydraulic cylinder thrust measurement,ultrasonic welding clamp force control,and so on.

Flange type force sensor Tension compression load cell flange mounted

Specifications

Capacity	2kN 3kN 5kN 10kN 20kN
Rated output	1.0 mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Nonlinearity	±0.2% R.O.
Hysteresis	±0.2% R.O.
Nonrepeatability	±0.1% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	750±100 ohms
Output resistance	702±5 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø5*3000mm 4-core shielded cable
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

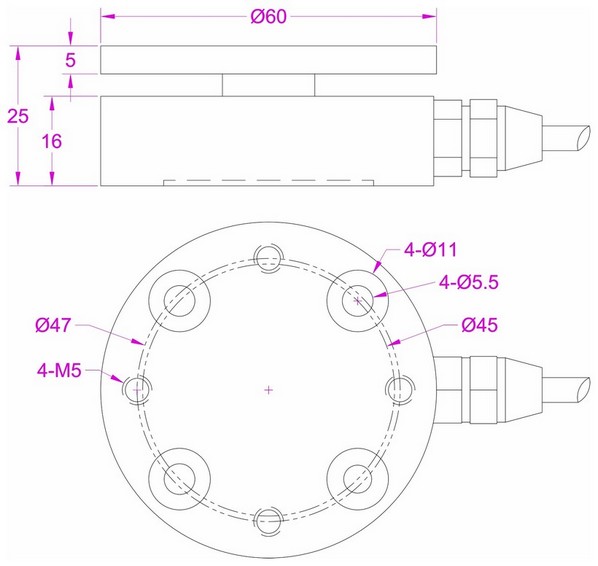

Dimensions(unit in "mm")

Flange type force sensor Tension compression load cell flange mounted

Click here to download datasheet
