Tension and compression load cell 0-60kN Press force transducer with flange mounting

Name: Tension and compression load cell 060kN Press force transducer with flange mounting
Brand: Forsentek
Price: 1 USD

Tension and compression load cell 0-60kN Press force transducer with flange mounting Manufactures

Brand Name : Forsentek

Model Number : FFE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Tension compression force measurement

Type : Flange mounted load cell

Output : Analog Sensor

Capacity : 2kN 3kN 5kN 10kN 20kN 30kN 40kN 50kN 60kN

Material : Stainless steel

Contact Now

Tension and compression load cell 0-60kN Press force transducer

Tension and compression load cell FFE is made of stainless steel based on strain gauge technology intended for both compression and tension force measurement,force sensor FFE offers 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 40kN / 50kN / 60kN different rated capacities to choose from,which delivers maximum 0.3% non-linearity of the rated output.Flange-to-flange structure enables FFE to be easily and firmly connected to force applying mechanism,you may find compression force sensor FFE suitable for applications such as hand press force verification,actuator force control,assembly force checking,spring testing,air cylinder thrust measurement,ultrasonic welding clamp force control,and so on.

Tension and compression load cell 0-60kN Press force transducer with flange mounting

Specifications

Capacity	2kN 3kN 5kN 10kN 20kN 30kN 40kN 50kN 60kN
Rated output	1.5 mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Nonlinearity	±0.3% R.O.
Hysteresis	±0.3% R.O.
Nonrepeatability	±0.1% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	750±100 ohms
Output resistance	702±5 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Stainless steel
Cable	Ø5*3000mm 4-core shielded cable
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Dimensions(unit in "mm")

Tension and compression load cell 0-60kN Press force transducer with flange mounting

Click here to download datasheet

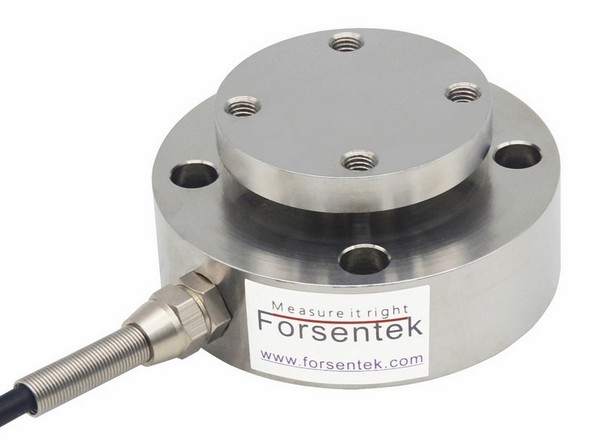

Tension and compression load cell 0-60kN Press force transducer with flange mounting Images
