Shaft to Shaft Dynamic Torque Sensor 0-500Nm With 0-5V 0-10V 4-20mA output

Brand Name : Forsentek

Model Number : FYTE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2660pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Usage : Torque Speed Measurement

Type : Contactless torque sensor

Output : ±5V/±10V/4-20mA

Capacity : 0-500NM(Selectable)

Connection : Shaft to shaft

Contact Now

Shaft to Shaft Dynamic Torque Sensor 0-500Nm With 0-5V 0-10V 4-20mA output

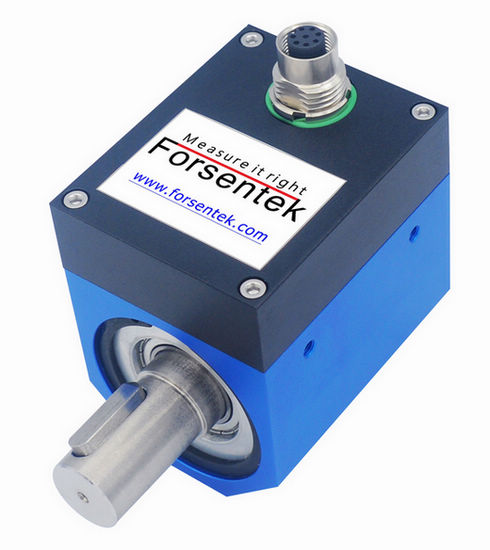

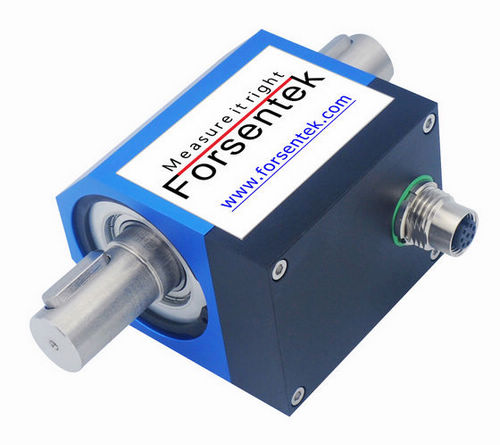

Non-contact shaft to shaft Dynamic Torque Transducer FYTE offers a contactless transmission for bridge supply voltage and measurement transmission which enables continuous operation with low wear out. Contactless rotary torque sensor FYTE offers 1Nm / 2N*m / 3N-m / 5Nm / 10Nm / 20N*m / 30Nm / 50Nm / 100Nm / 200N*m / 300Nm / 500N*m 12 rated capacities with maximum 8000RPM to choose from, ±5V /±10V / 4-20mA direct output from the transducer thanks to its built-in amplifier circuit for easy data processing. Shaft to shaft configuration, can be easily installed through couplings, the housing remains still while the shaft rotates during measurement, it is also applicable for torsion measurement with low rotating speed. Typical applications for Rotary Torque Meter FYTE are such as motor test benches, tightening torque monitoring, rotating torque measurement for servo motors, pumps, gearbox, engines, agitators,and so on.

Shaft to Shaft Dynamic Torque Sensor 0-500Nm With 0-5V 0-10V 4-20mA output

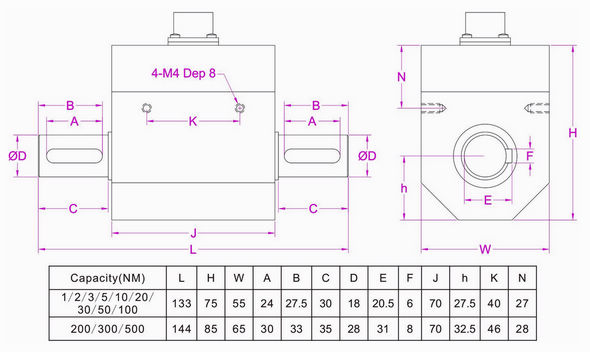

Dimensions

Shaft to Shaft Dynamic Torque Sensor 0-500Nm With 0-5V 0-10V 4-20mA output

Specifications

Capacity

1N*m / 8.8 lb-in / 10kg*cm

2N-M / 17.7 lb*in / 20kgf*cm

3Nm / 36.5 lbf*in / 30 kg*cm

5NM / 44lb-in / 50 kgf*cm

10Nm / 88 lb*in / 1kg*m

20N-M / 177 lbf*in / 2kgf*cm

30N*M / 265lbf*in / 3 kg-m

50NM / 442 lbf-in / 5 kgf-m

100NM / 885 lbf*in / 10kgf-m

200N*m / 1770 lb-in / 20 kgf*m

300Nm / 2655 lbf*in / 30kgf*m

500N*m / 4425 lb-in / 50 kg*m
Maximum Rotating Speed

0-100Nm: 8000RPM

200/300/500Nm: 6000RPM
Rated output ±5V / ±10V / 4-20mA
Excitation 24V DC (or 12V DC)
Zero balance ±2% R.O.
Nonlinearity ±0.2% R.O.
Hysteresis ±0.2% R.O.
Nonrepeatability ±0.2% R.O.
Creep(10min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Operating temp. -10...+60oC
Ingress protection IP40
Material of element Stainless steel
Material of housing Aluminum
Cable

Ø6*3000mm

(Mating connector provided)

Contactless Shaft Type Rotary Torque Transducer 500N*m 300Nm 200Nm 100N*m 50N-m 20N*m 10Nm 5N*m 2N-m 1Nm

Shaft to Shaft Dynamic Torque Sensor 0-500Nm With 0-5V 0-10V 4-20mA output

Click here to download datasheet
